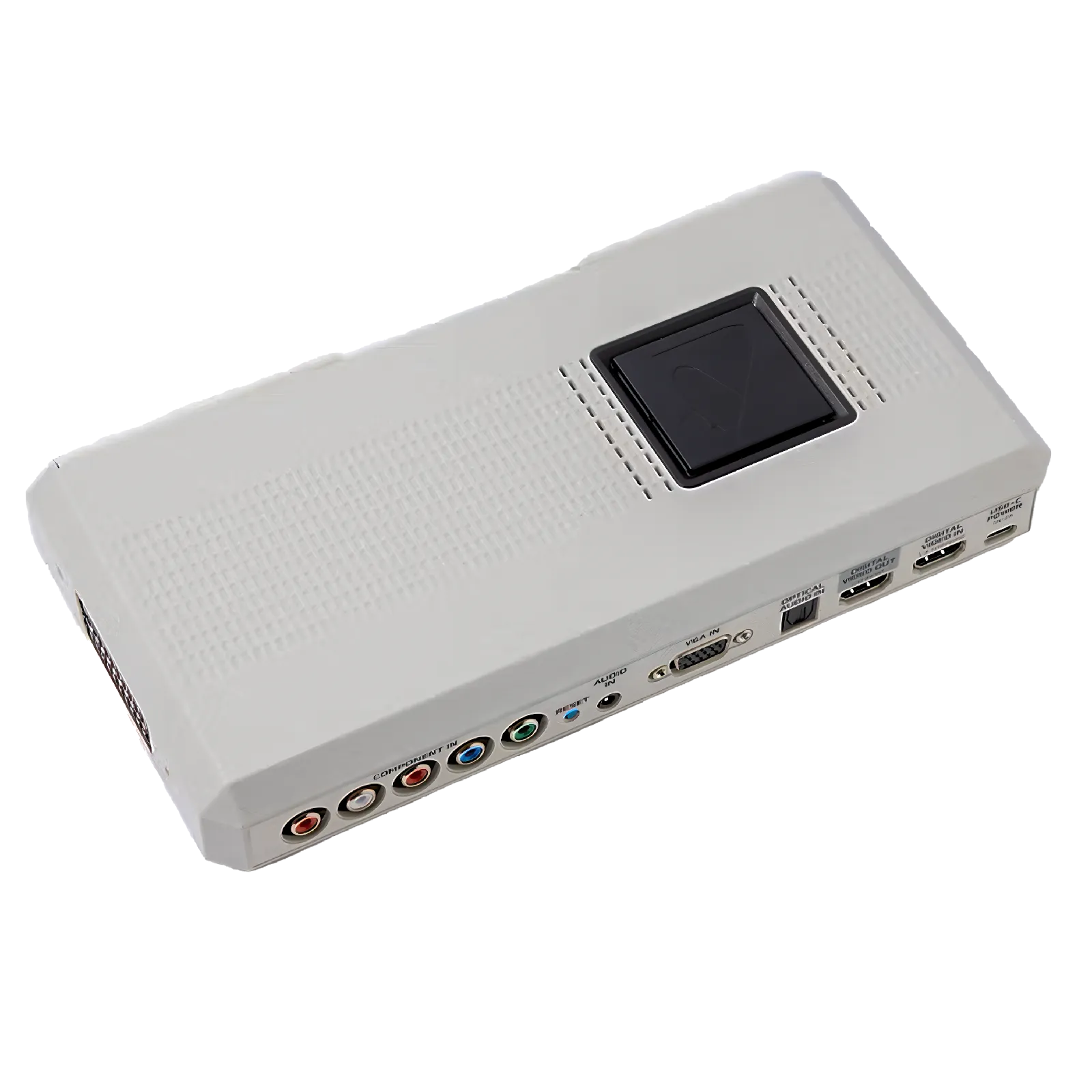

RetroTINK-4k CE

 RetroTink

The RetroTink-4k CE is basically a cheaper version of the RetroTink-4k. While some of the functions had to be cut, it will still be good enough for most gamers.

€503.36

If you are living outside of the EU, import taxes might be charged. Please check this with your government

block Out-of-Stock

Here's a video that shows the RetroTink-4k in action - including how profiles work and how awesome a job it does!
Please note that this shows the standard 4k model, not the 4k CE. Read below for differences between the 4k and the 4k CE.

The RetroTink-4k CE is basically a cheaper version of the RetroTink-4k. While some of the functions had to be cut, it will still be good enough for most gamers.



These are the differences between the 4k CE and the 4k model:

  • No Rotation Support
  • Input Width Limitations: Maximum input source horizontal width is limited to 2048 pixels. (This does not affect MiSTer or other super-resolution sources decimated to a lower effective resolution).
  • De-Interlacing: Linear motion-adaptive de-interlacing only without advanced sensitivity controls; no bob field offset adjustments, no edge-adaptive interpolation. First order field differences only, enhanced motion detection using second order field differences not possible.
  • Inverse Telecine: No support for inverse 3:2 to de-interlace telecine content or to reconstruct 24 fps sources from 60i and 60p. No support for inverse 2:2 for PAL content and reconstructing 30 fps games output in 480i.
  • No IIR Blur Support: Horizontal softening can still be accomplished by using cubic, Lanczos or bilinear soft interpolation filters.
  • BFI: Basic BFI insertion of black whole frames only. No alpha bending or colored insertion.
  • S-Video: No enhanced S-video support. Regular SDP decoder only.
  • XBR Smoothing: Not included.
  • NTSC Composite Video: No 3D comb filtering. Notch and 2D modes only.
  • Auto-Phase Adjustment: Continuous background auto-phase is not available (auto console sample rate detection is still included, but users will need to calibrate and save the phase to their profile during first use). On demand auto phase (by pressing the button) is still supported.
  • OSD Color Depth: Reduced color depth for the banner image from 11 to 6 bits.


These are the features of the 4k CE:

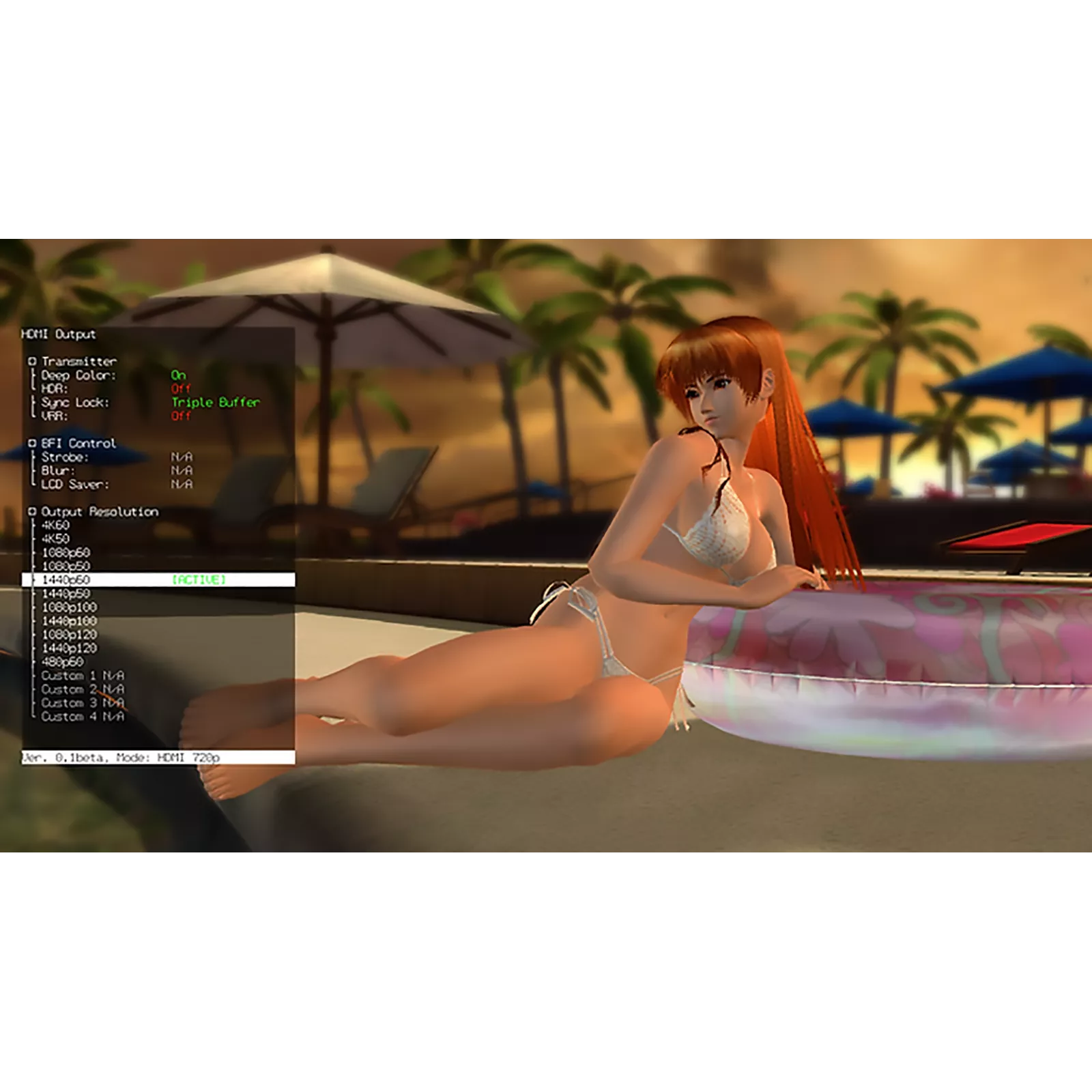

Outputs

  • HDMI (TM) 2.0 up to 4K60.
    • Flexible output modes including 480p, 1080p, 1440p at various refresh rates (60/120/etc.)
    • Custom modelines possible via a text file on the SD card
  • Fully buffered video (drop-free on input changes), Gen Locked and Frame Locked sync modes
  • HDR10 output with full color correction to Rec. 2020
  • User selectable colorimetry (Rec. 709, Rec. 2020, sRGB, etc.)
  • High frame rate output modes: 1440p120, 1080p120
  • Optional deep color output (10 bits at 4K60 may not be compatible with all displays)
  • Up to 8-ch LPCM audio

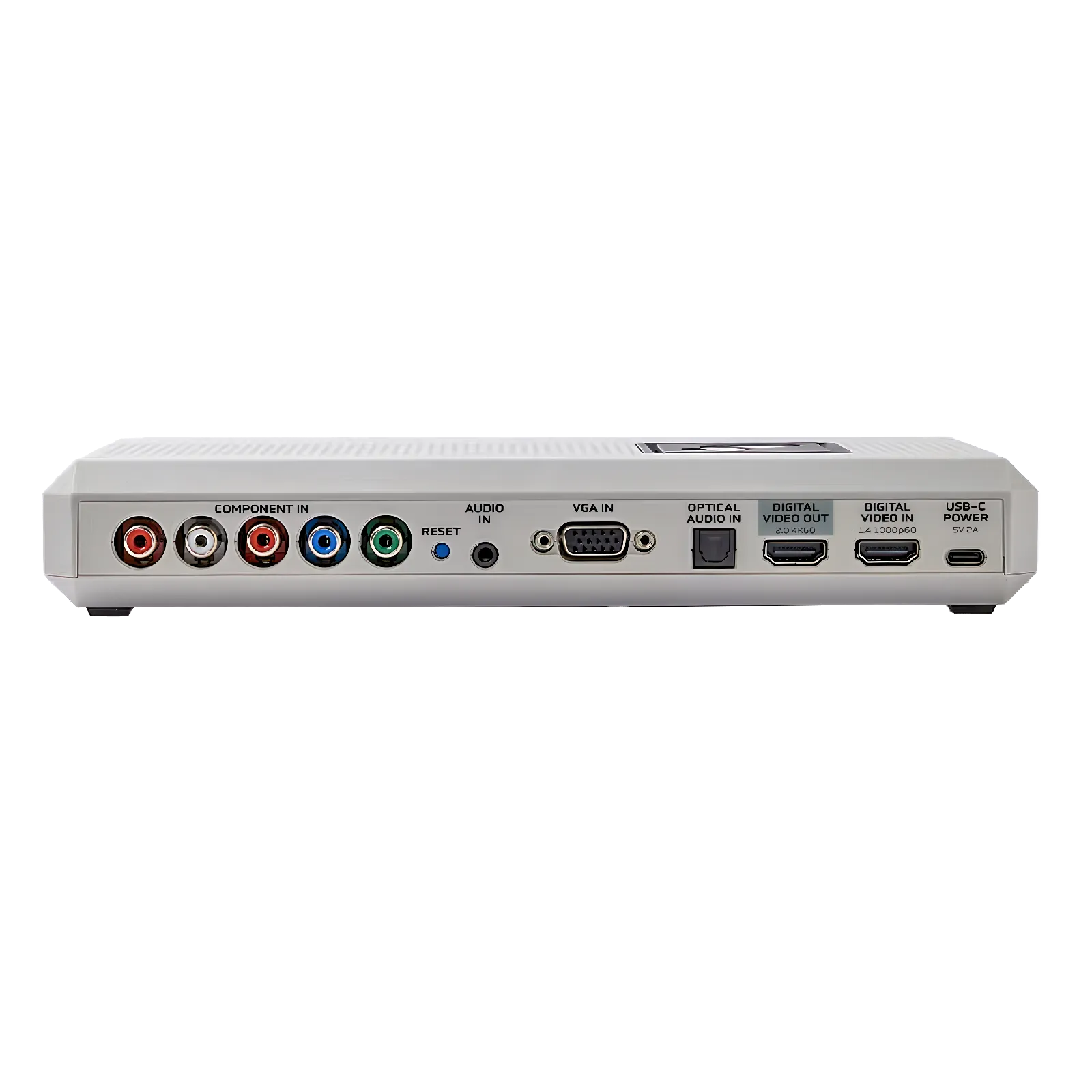

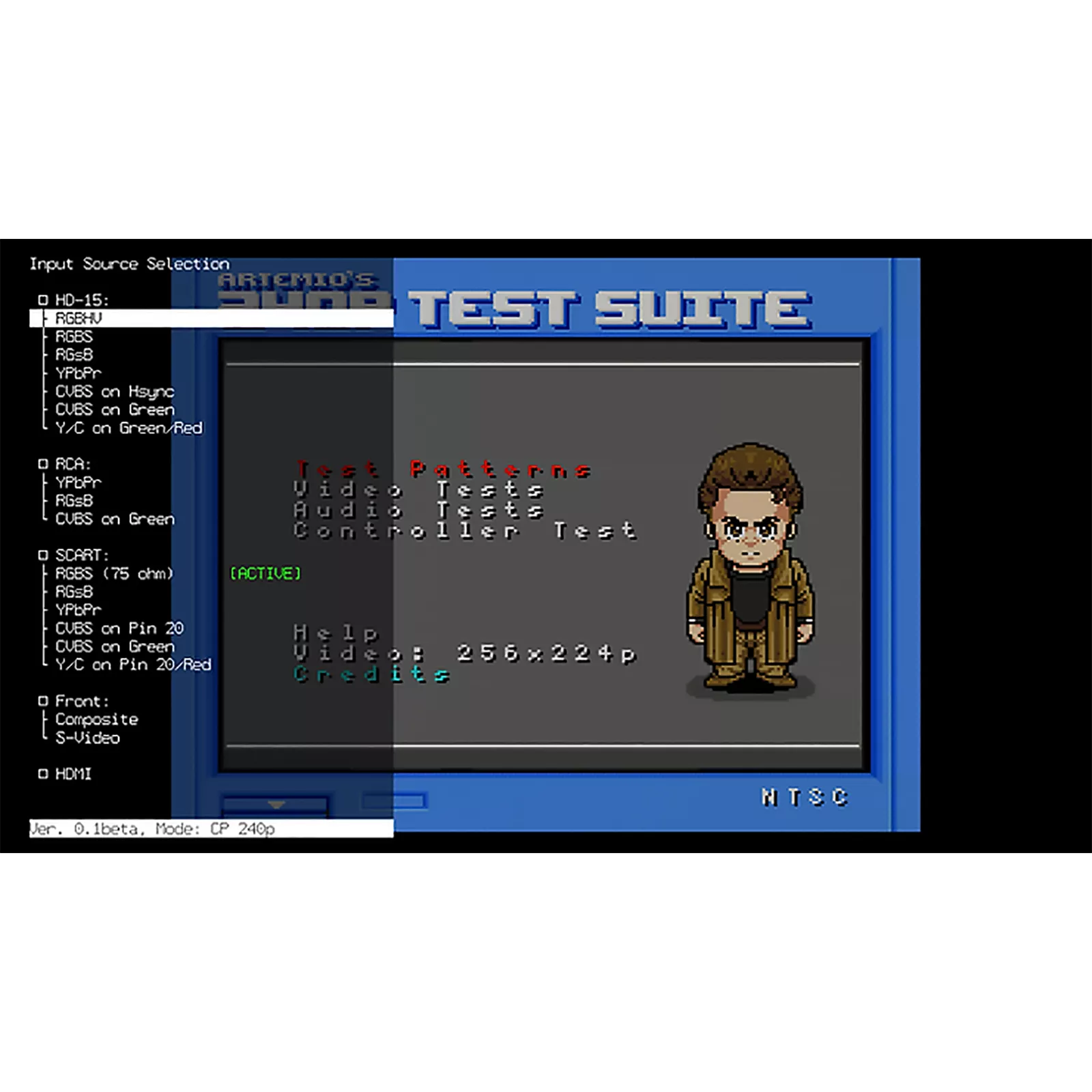

Inputs

  • Wide array of inputs that support virtually every single format out of the box
  • HD15/VGA:
    • RGBHV
    • RGBS
    • RGsB
    • YPbPr
    • S-Video
    • Composite
  • SCART
    • RGBS
    • RGsB
    • YPbPr
    • S-Video
    • Composite
  • Rear RCA
    • YPbPr
    • RGsB
    • Composite
  • Front Composite
  • Front S-Video
  • Analog audio input up to 96 kHz/24-bit wth full gain control
  • Optical TOSLINK audio input supporting 2-Ch LPCM or compressed surround
  • Audio input can be independently selected of video source
  • HDMI (TM) 1.4 Input supporting up to 1920x1080p60/1920x1200p60 CVT-rb and 8-Ch LPCM or compressed surround

Analog Video

  • Automatic gain calibration
  • Automatic input cropping to trim borders
  • Full control of gain, offset and sample rate
  • Robust composite/S-video decoder with multi-region support (NTSC, PAL, PAL-60, SECAM)

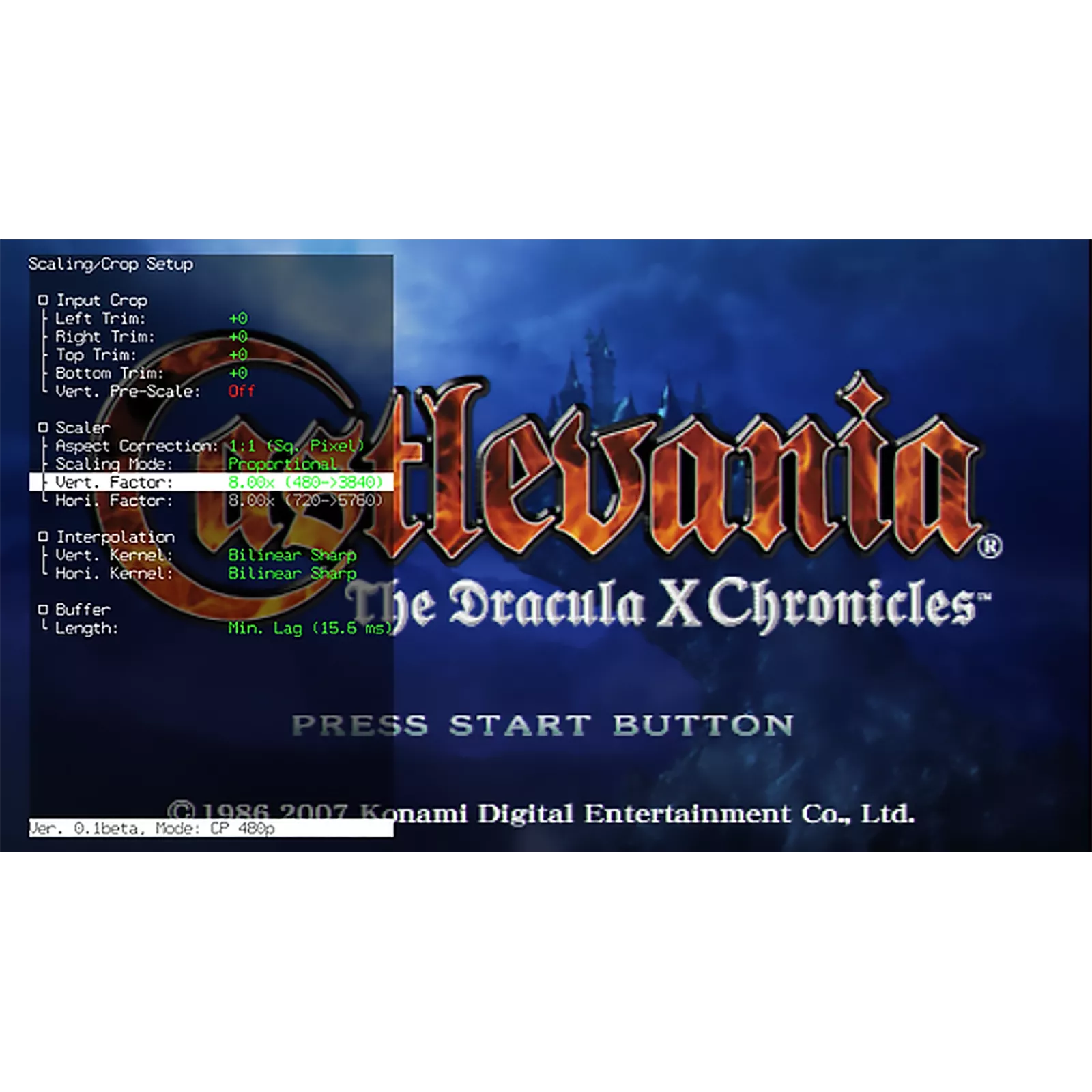

Scaling

  • Fully flexible, custom cropping and zooming in the horizontal and vertical space independent of other settings
  • Automatic aspect ratio correction to 4:3 or 16:9
  • Motion adaptive deinterlacing

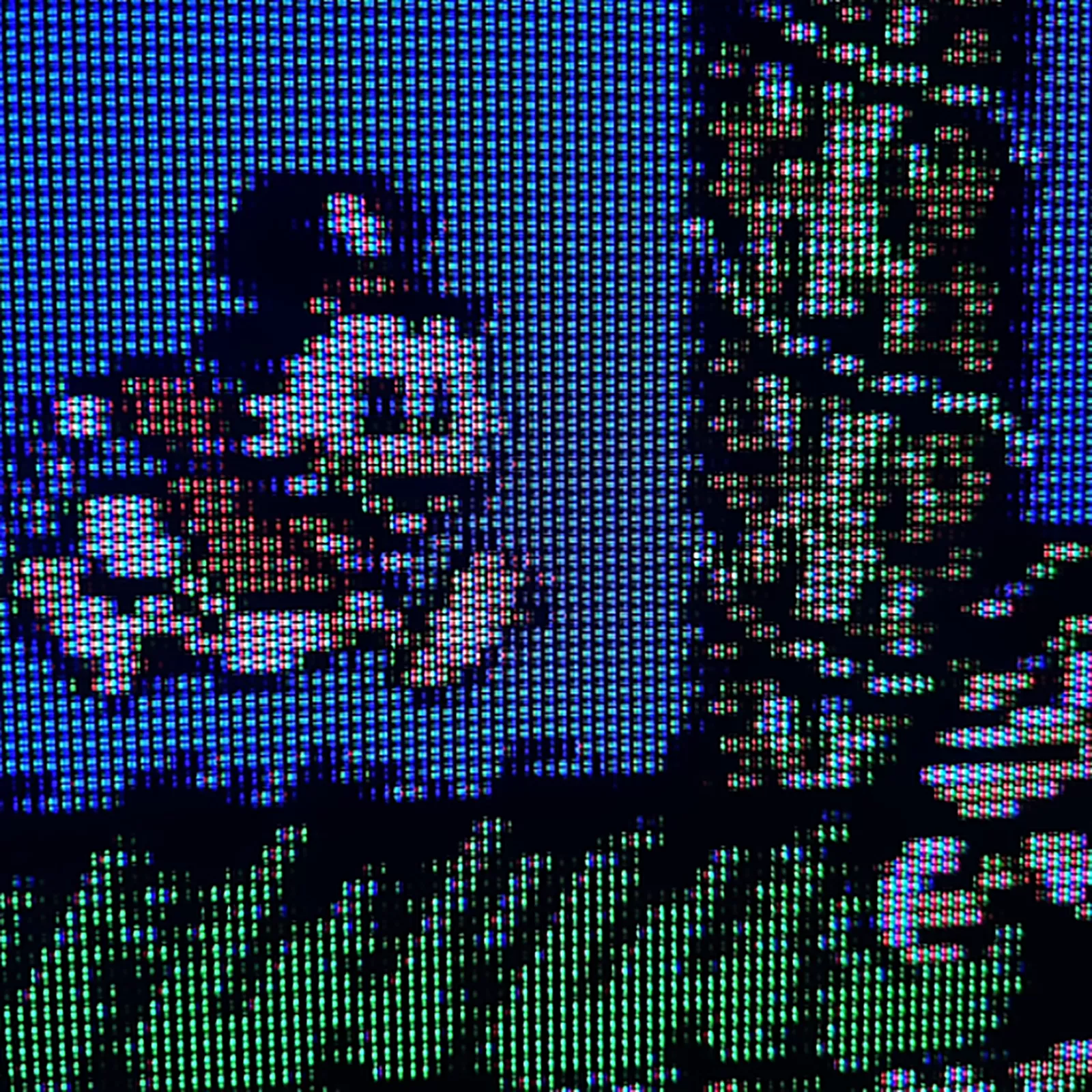

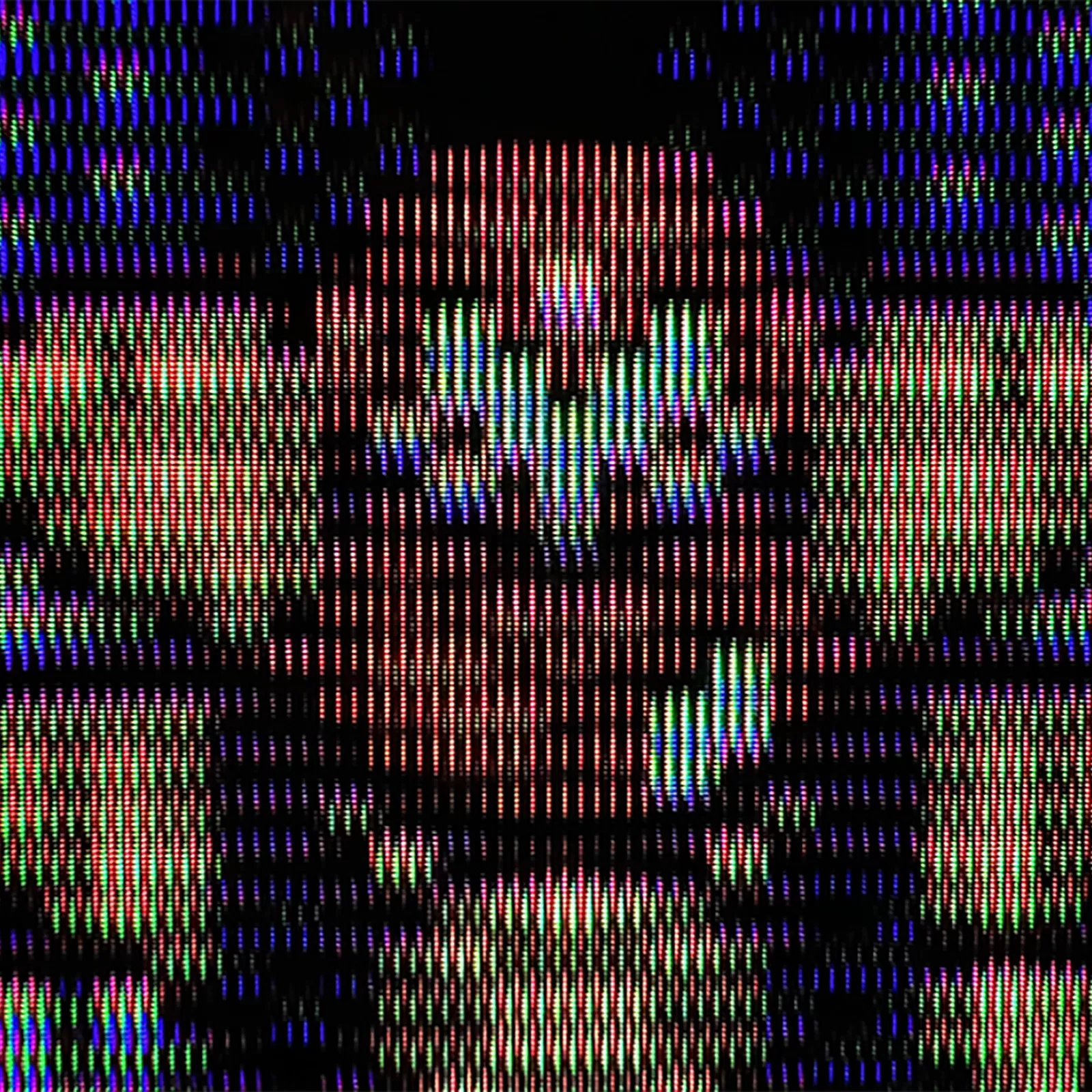

CRT Simulation

  • Multiple CRT beam profiles
  • Fully configurable CRT beam strength and intensity modulation
  • Adjustable CRT masks and strength
  • Interlaced video simulation with offset scanlines
  • LCD simulation patterns that automatically adapt to scaling, including non-integer factors

Image Processing

  • End to end RGB pipeline with internal 12-bit precision
  • Conventional gamma and approximated modes to minimize quantization error
  • Advanced and fully configurable gamma and perceptual quantizer (HDR)
  • Advanced color gamut transforms to simulate different display technologies
  • Linear light processing

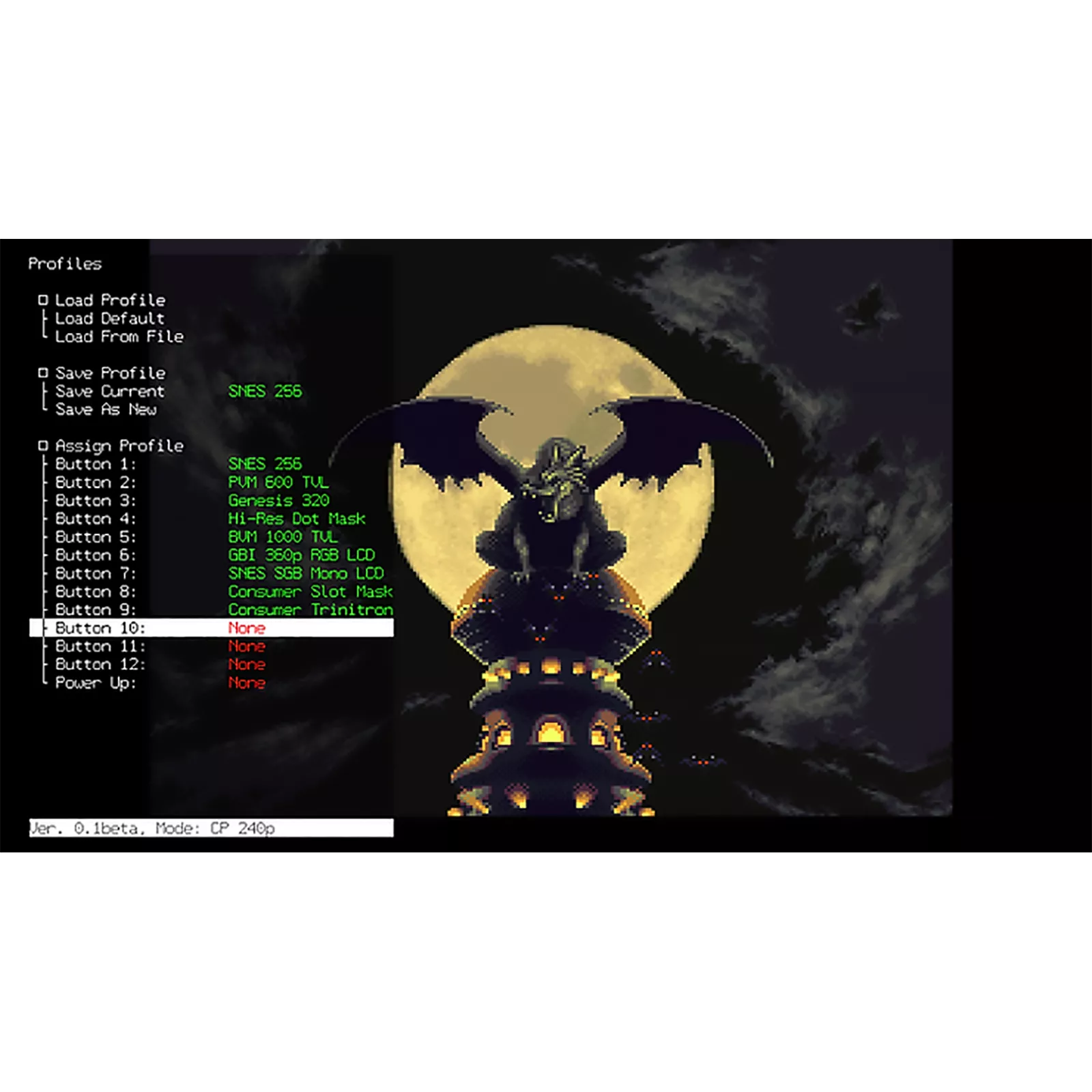

Profiles

  • User profiles stored on SD card
  • Profiles can be assigned to 1-12 buttons on remote
  • Auto-load profile on powerup

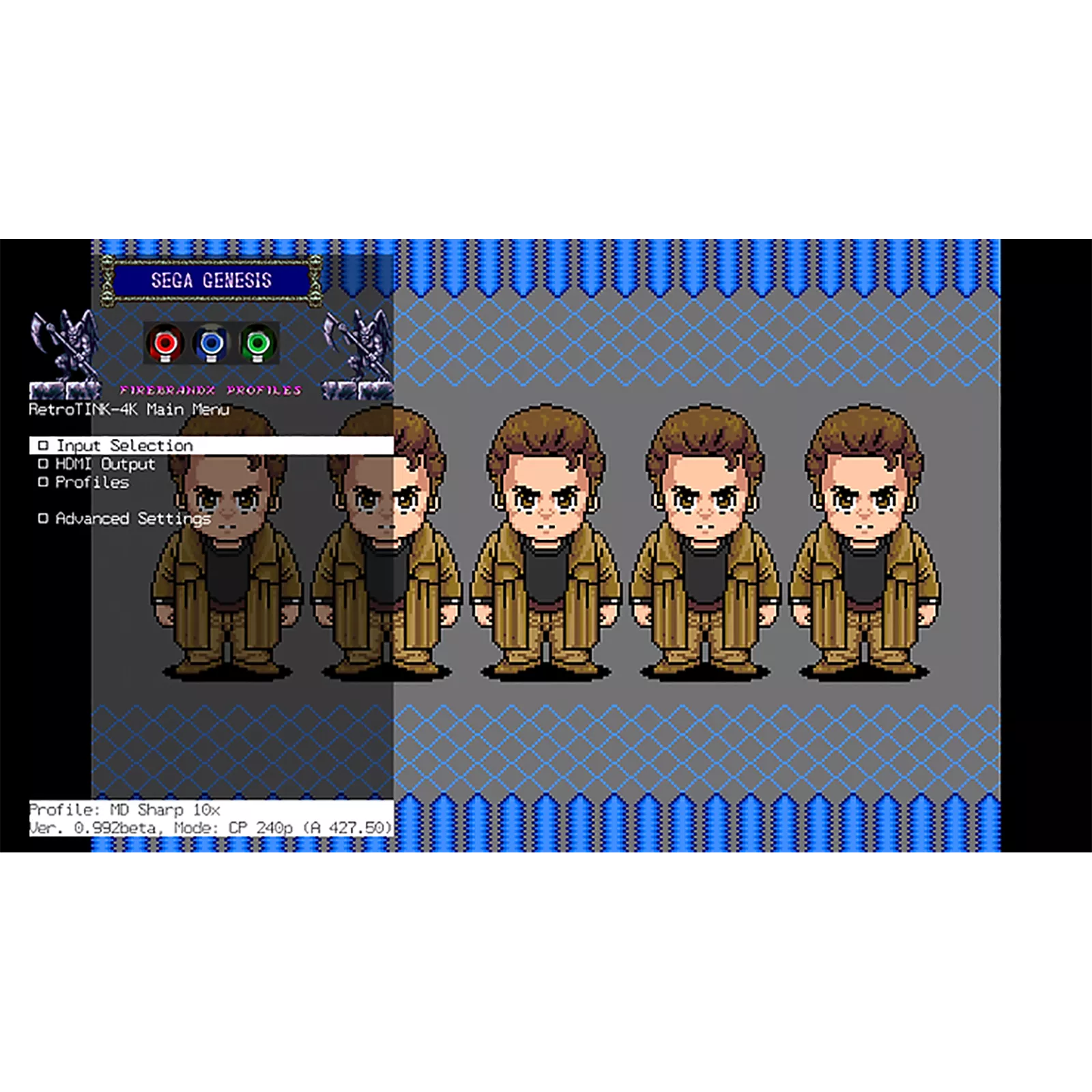

  • Includes profiles made by legends FireBrandX and Wobbling Pixels

User Interface

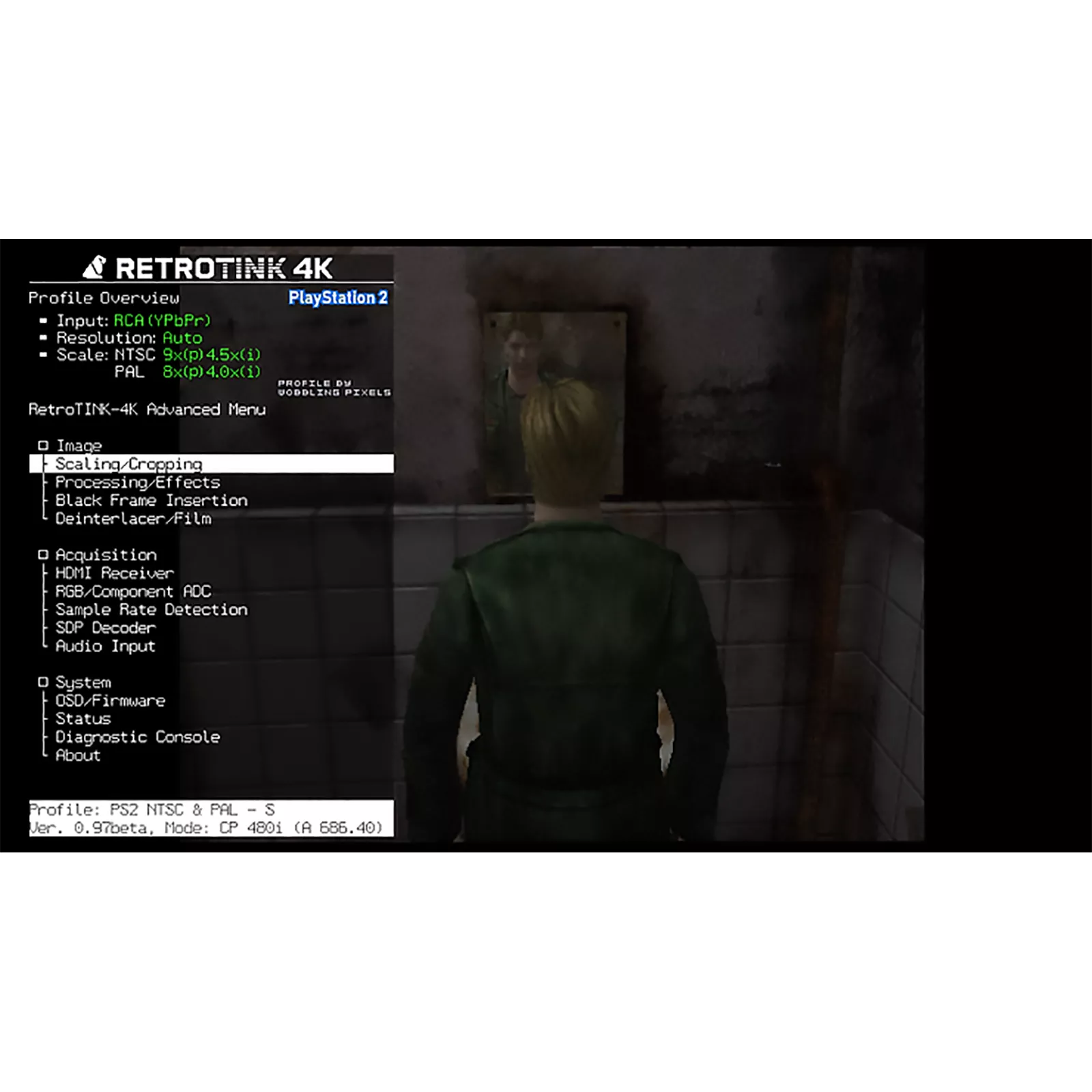

  • Advanced OSD menu based system
  • Custom branded remote control
  • Firmware upgradable via SD card

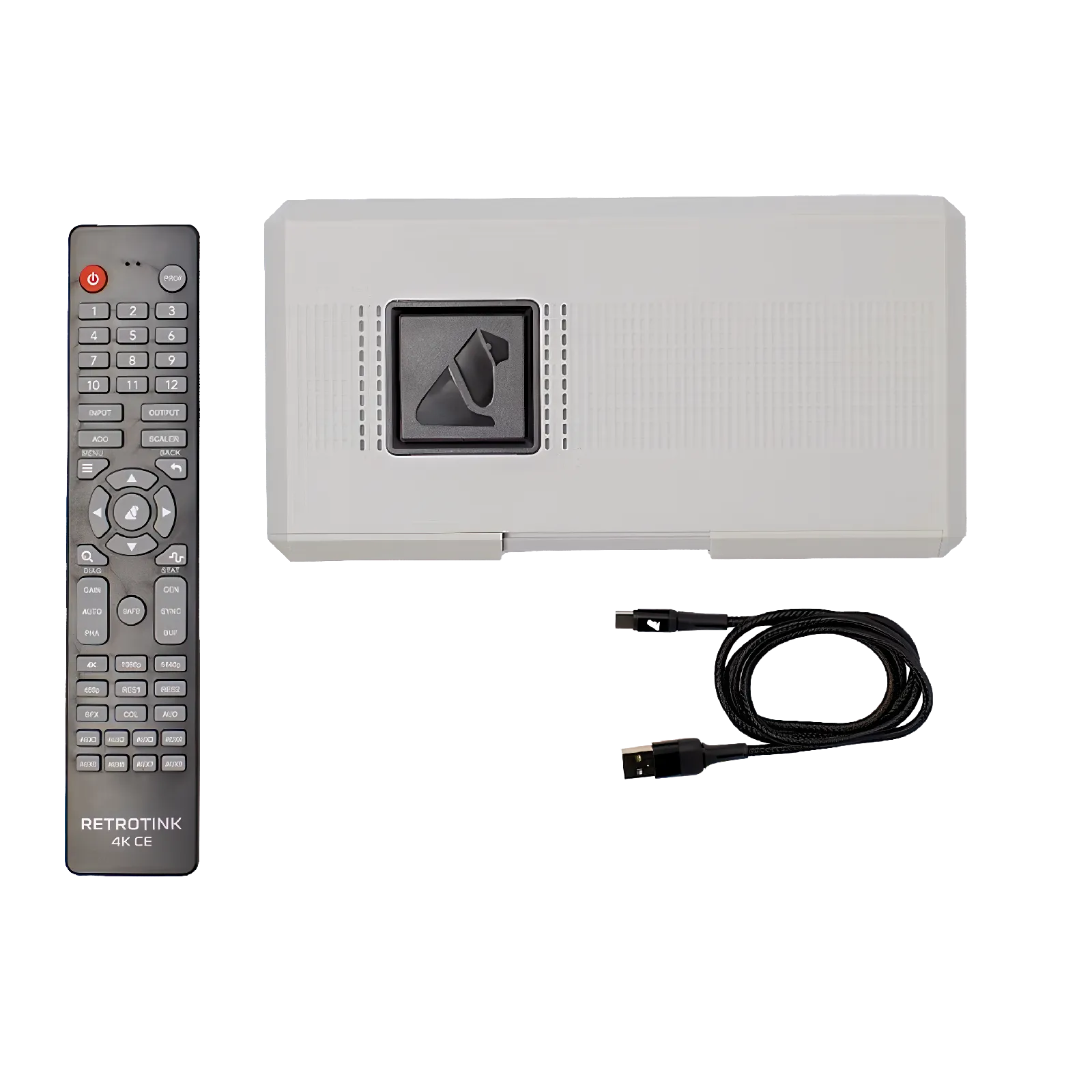

Product Contents

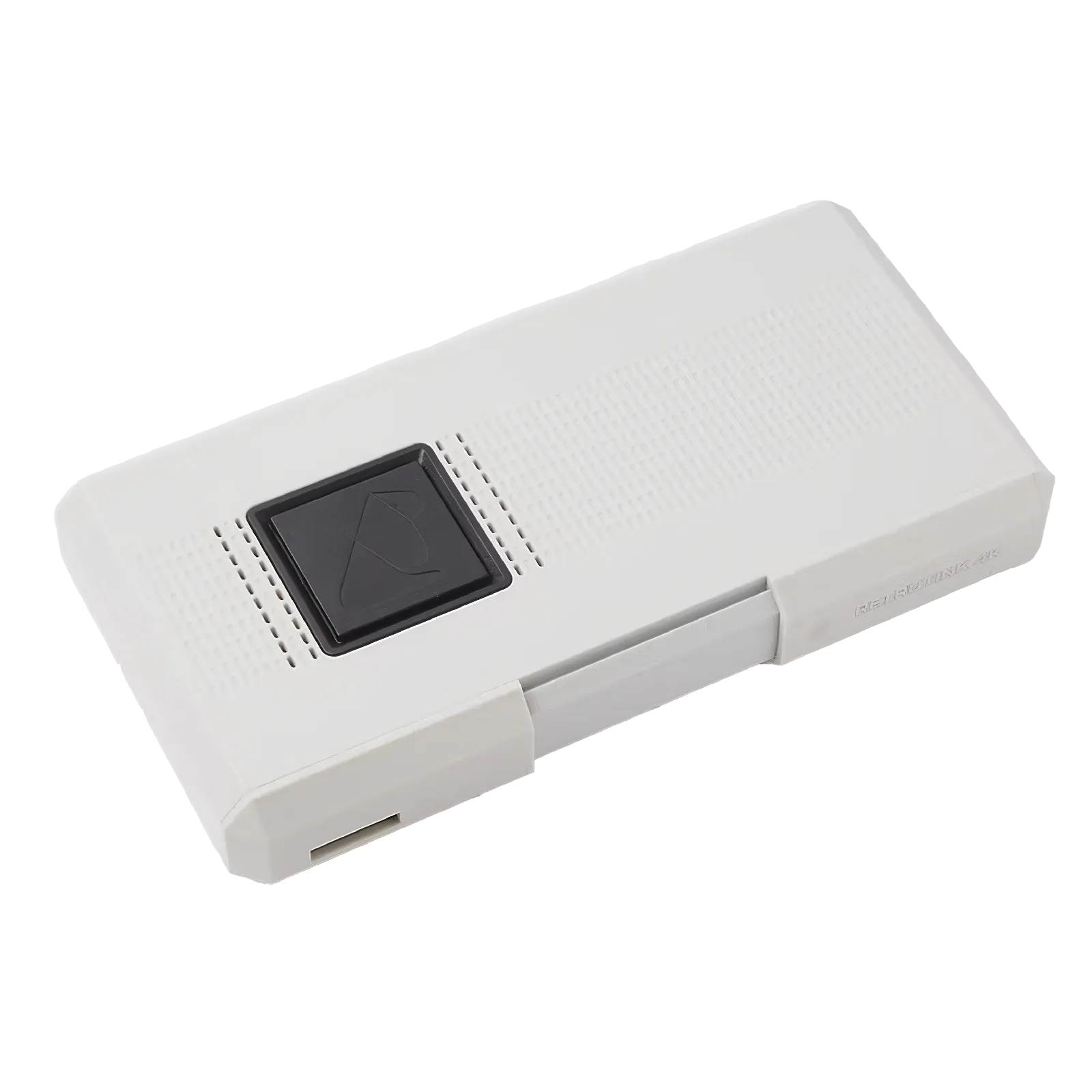

  • RetroTINK-4K CE Unit
  • 8GB SD Card with pre-loaded software and profiles
  • Remote Control
  • USB-A to USB-C power cord

Due to wide range of international plug types as well as product liability with AC adapters, we are not including a power brick. You may use any USB source supplying at least 5V/2A.

User Manual

The user manual is hosted at the RetroTINK-4K Wiki and is updated as new features are added.
