Saturn USB-C Replacement Power Supply

The original Saturn power supply has always been a bit problematic. It has a combined 110v/240v AC to DC converter which is inefficient and noisy - and can even affect the video signal.

Additionally, if you're living in an area with where 220-240V is standard, connecting an NTSC Saturn (which uses 110V) needs expensive hardware as well. And if you accidentally plug it directly into the your 240V wall plug, you can damage the console.

This is being fixed when using the Robot_Retro Saturn Replacement Power Supply!

This upgrade is compatible with all Saturn models with the exception of VA0 (Type A power supplies).

See here for information on how to determine your Saturns model number.

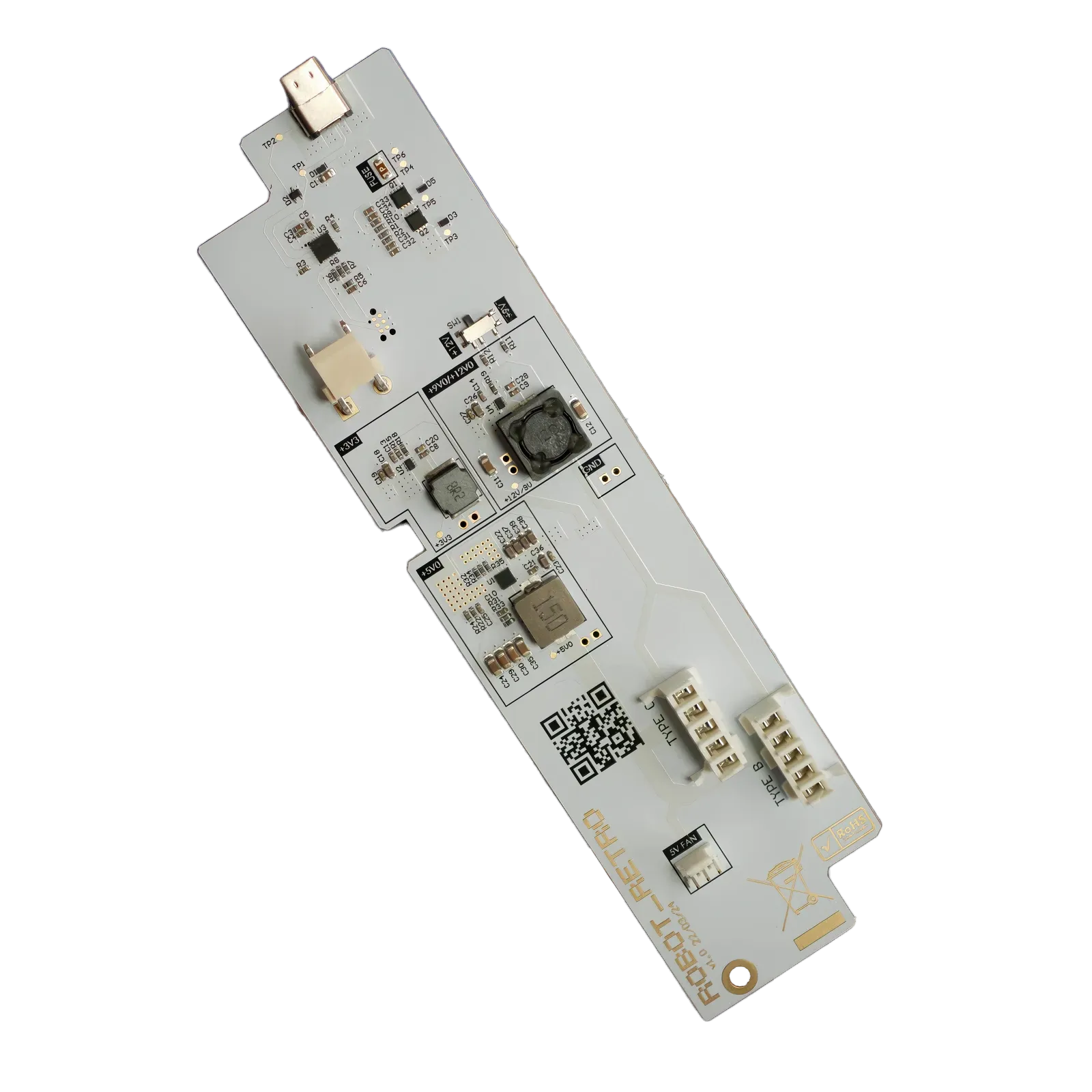

The following voltage should be set using SW1 (instructions are also on the back of the PCB):

• Type A (VA0) = Not compatible so N/A
• Type B (VA1 to VA5) = +9V
• Type C NTSC (VA6+) = +9v or +12v (either will work)
• Type C PAL (VA6+) = Check original or use 9v if unsure

Here is a small installation video:

Here are the features in detail:

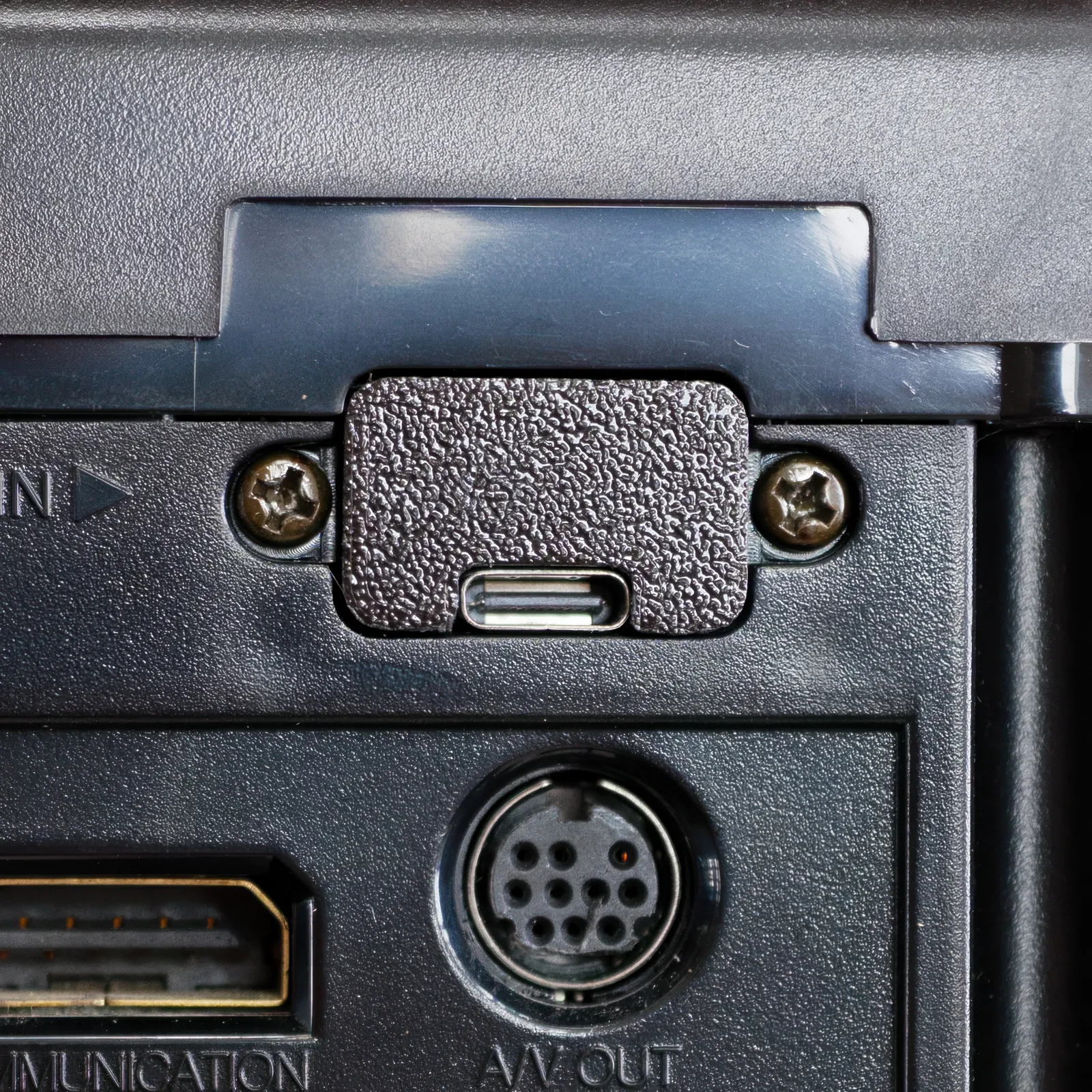

• Powered from a 15v or 20v Power Delivery USBC charger. Most 30W USB-PD chargers will work fine.
• Tested to be between 90 and 95% efficient across all loads.
• Low signal noise and heat.

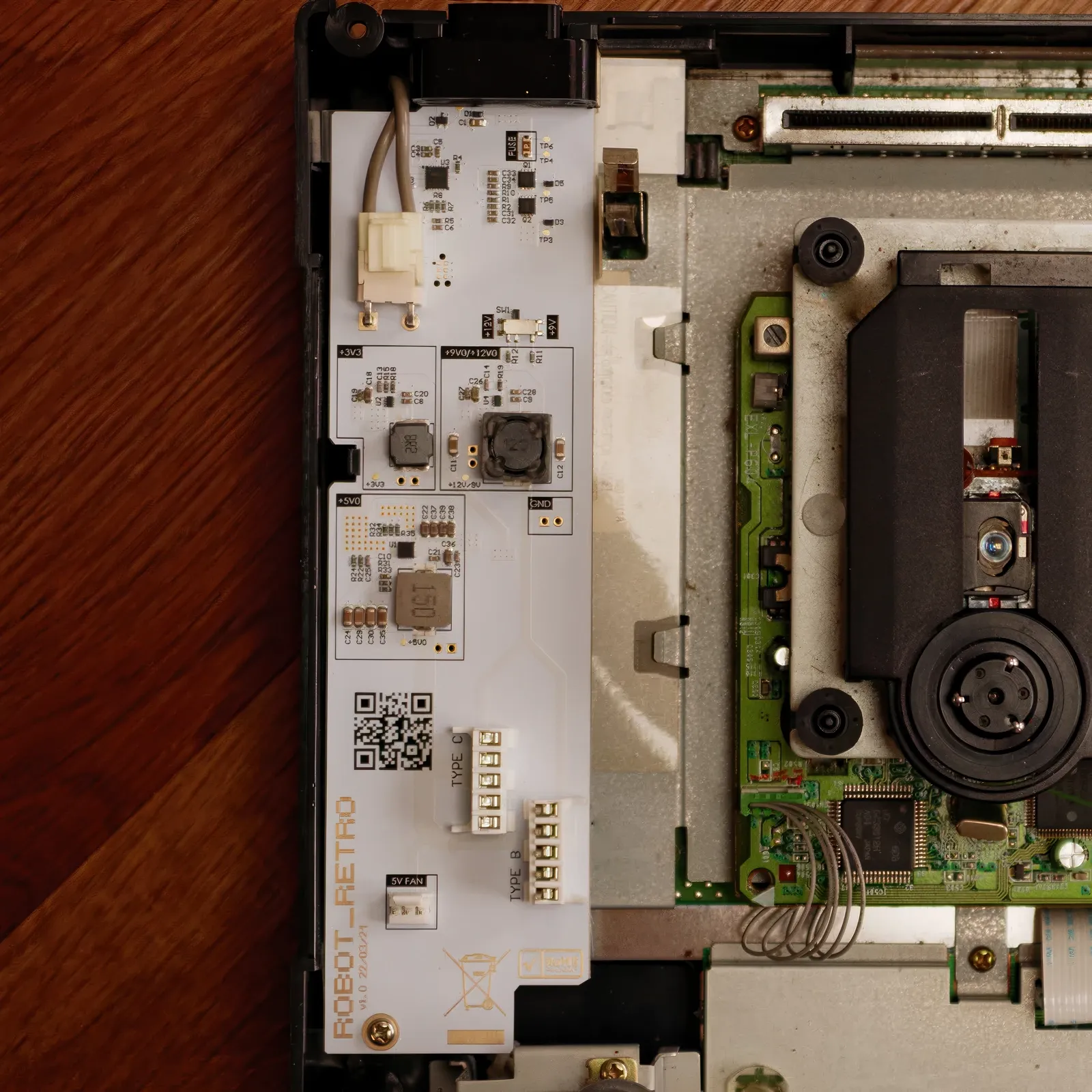

• Drop in solution. No soldering, wires or complicated install required.
• No flashing LEDS, perfect for clear shells.
• Works perfectly with Fenrir
• Works with all Saturn models (PAL, Japanese, etc) except VA0 and removes the risk of accidentally plugging in 240V into a 110V system and causing damage.
• Overvoltage, over temperature and fused supply.
• Includes 5V and 12V Noctua fan headers
• Included 3D Spacer (Black)
