RetroTink HD15 Dongle (PS1)

The RetroTINK cable series is a line of very high quality coaxial interconnects for the best possible video quality.

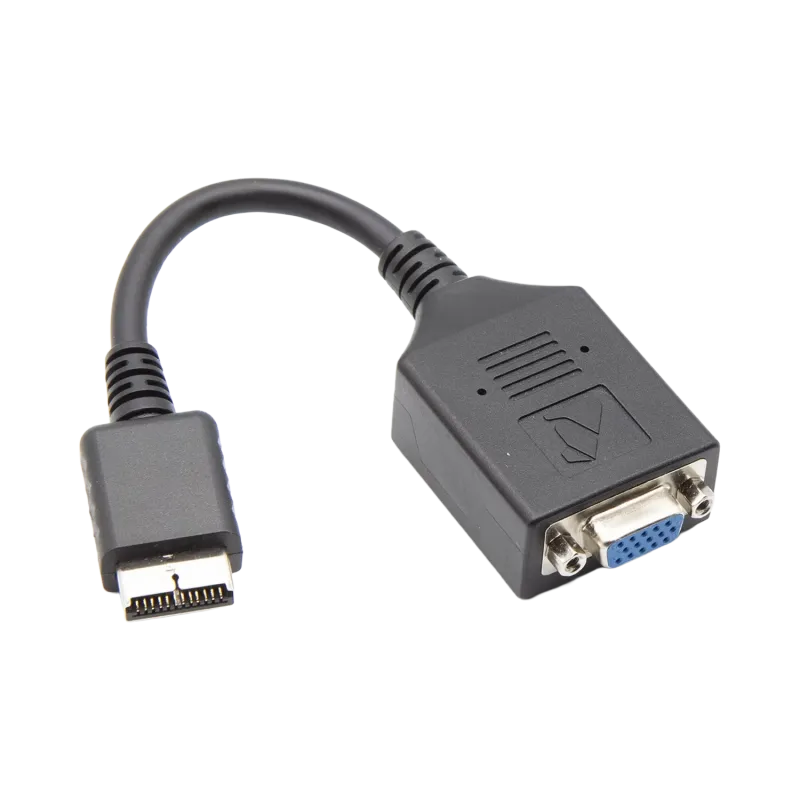

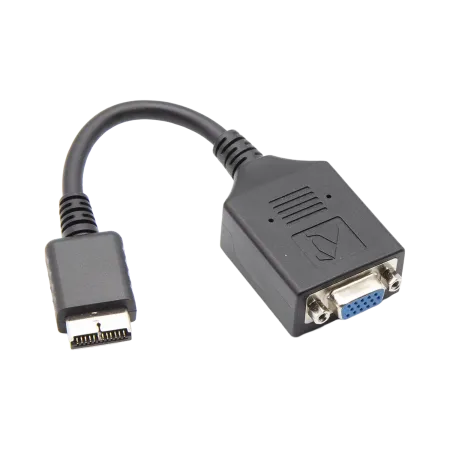

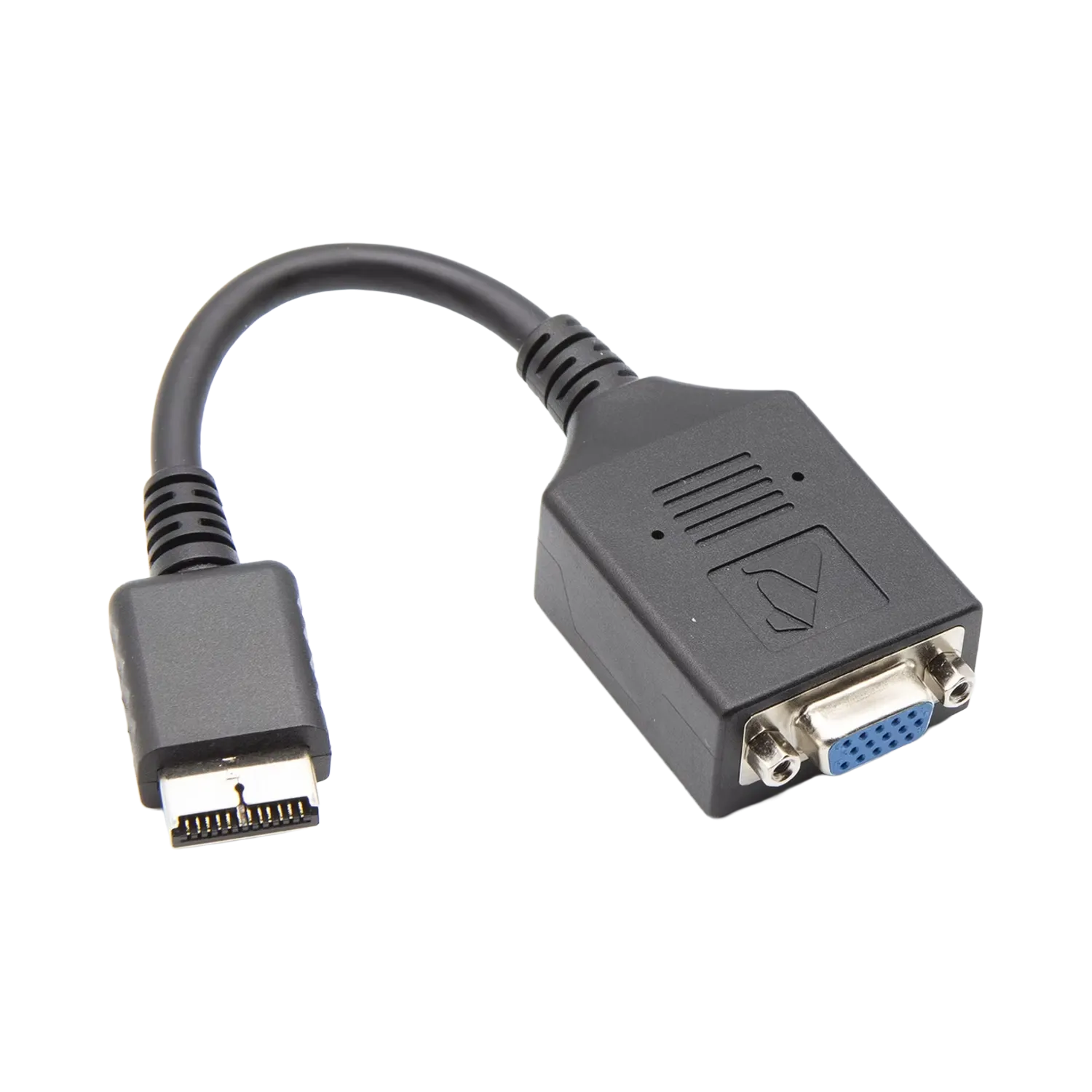

This is a short dongle that adapts PlayStation 1 output to HD15. It can also be used with a PS2 or PS3 if it is setup to RGB Output.
You need to use either a HD15 to VGA, HD15 to SCART or HD15 to BNC cable to connect it to your video monitor.

Please note that this does not upscale or change the timing of the system, so you can only connect it to devices that support the original video output of the console (like TVs), most VGA monitors will not work.

Features:

• Internal active amplifier and conditioner to output 75 Ω compliant video signals
• Double shielded cables (individual shielding per signal plus global shield)
• Sync source taken from composite video from the console
• Sync output on Pin 13, 5V TTL level
• Stereo audio on 3.5 mm jack with separate shielding

Notes:

• We are not able to support or guarantee functionality with modded consoles. Please refer to your modder for assistance.
  Specifically, some HDMI-modded PS1 units may not be able to supply sufficent current on the 5V pin of the AV out causing sync drops.
• The PS1 version is not intended for use with the PS2 or PS3 when outputting YPbPr (Component) video. If you plan using it with the PS2 or PS3, you need to switch it to RGB output.
• Does not upscale the video or change the sync timing. Only for use with devices that support the video timings of the device or scalers like the RetroTINK-4K.
