RetroTink HD15 to BNC Cable - RetroTink
New

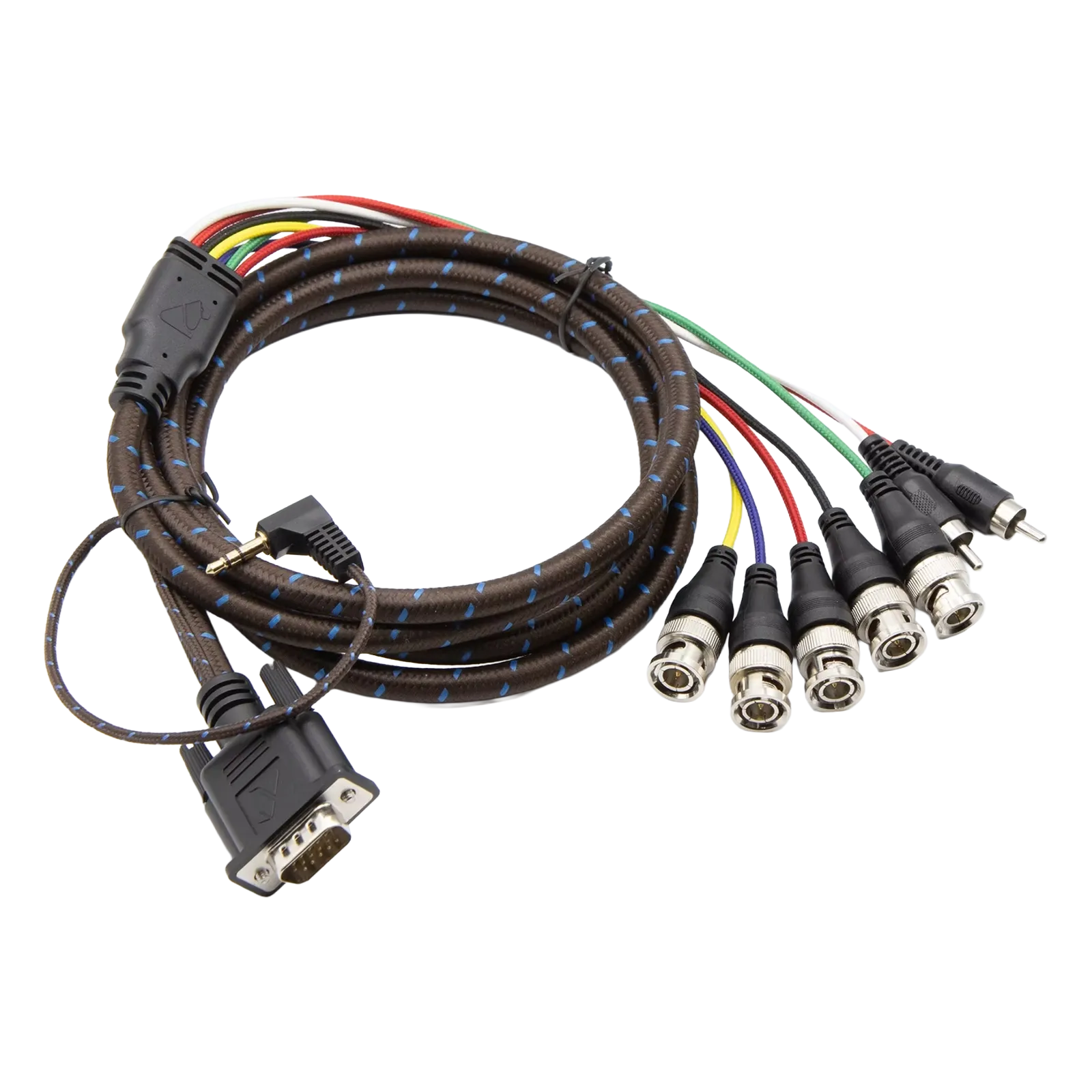

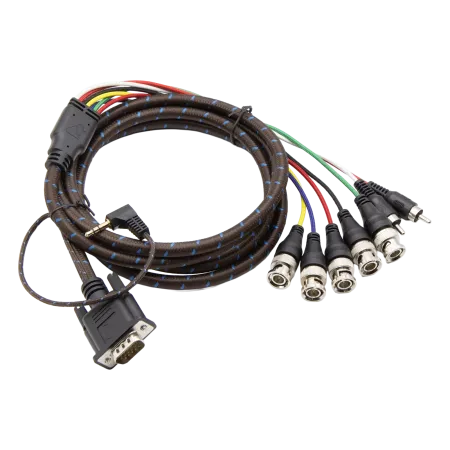

RetroTink HD15 to BNC Cable

RetroTink

This cable is used to connect one of the RetroTink HD15 dongles to a BNC input, for high quality video output from your Retro Consoles.

€21.01

If you are living outside of the EU, import taxes might be charged. Please check this with your government

Ships in 1 - 3 Days
check In Stock
notifications Notify me when Price drops
Calculate the shipping cost

Buying this product you will collect €0.60 with our loyalty program. Your cart will total €0.60.

The RetroTINK cable series is a line of very high quality coaxial interconnects for the best possible video quality.

This cable is used to connect one of the HD15 dongles to a BNC input.

Features:

  • HD15 (VGA) plus audio (3.5mm) to 5 BNC (Red, Green, Blue, Hsync, Vsync) plus RCA stereo audio.
  • Impedance controlled 75Ω mini-coax for all video signal lines: Red, Green, Blue, Hsync, Vsync
  • Shielded audio to minimize AV crosstalk
  • Global shield over entire bundle to minimize noise pickup
  • 6ft length (1.80m)


Note:

  • The 470Ω sync attenuation resistor is for use only with sources that output 5V TTL level sync
  • The cable does not have a sync combiner - a valid composite sync signal must be present on HD15 Pin 13
  • There is no signal conversion - it will not scale high resolution VGA computer sources to standard definition TV
